How To Get Intel WiFi/BlueTooth Modules To Work With Hackintosh

Most of Windows Laptops are installed with Intel Wifi/Bluetooth modules, the popular ones are AC7260 (2×2) or 3160 (1×1). For Hackintoshes, most of us have to replace with broadcom Wifi/Bluetooth modules to have our hackintoshes WiFi and Bluetooth natively working. had come up with a patch to work with these Intel modules. had been moved to a new place.

Although the WiFi connections are not as fast as the Windows 10 but they’re efficient for normal use if we don’t need Airdrop function (since the Bluetooth is not handoff supported) and comfortable with open the laptops to replace the WiFi modules.

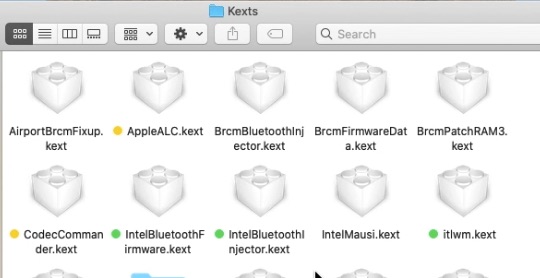

There are 3 kexts that need to be installed: itlwm.kext, IntelBluetoothInjector.kext, IntelBluetoothFirmware.kext and added to the kernel config.

3 Intel Kexts 3 intel kernel add

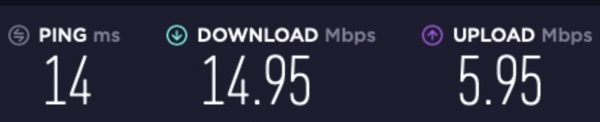

intel AC7260 wifi speed intel 3160 wifi speed Intel AC7260 Bluetooth Intel AC7260 Windows WiFi Speed


  • hello
    *** Sistem bilgilerim ***
    BootLoader : opencore
    Laptop Modeli : hp notebook 15-bs017nt
    İşlemci Model : iIntel® Core™ i3-6006U (2 GHz, 3 MB önbellek, 2 çekirdekli)
    Grafik Kartı : Intel® HD Grafik Kartı 520
    Ses Kartı Modeli : Realtek High-Definition
    Ağ Aygıtları : Intel® 802.11b/g/n/ac (1×1) Wi-Fi®
    Disk ve RAM 500 gb samsung 870evo ssd , 500 hdd 8 GB DDR4-2666
    Airdrop BrcmBluetoothInjector , BrcmFirmwareData I tried the kexts you gave but I didn’t work with Airdrop, unfortunately, thanks in advance for your help.
