Broadwell Dell HP Envy X360 MacOS High Sierra MacWannaBe

MacOS High Sierra 10.13 On Windows PCs-Laptops

For Broadwell HD5500 to boot without kernel panic, we need to boot installer and post installation differently due to the broadwell graphics frame buffer and the graphic kext.

For installation – Intel inject kext = NO and when it’s done for acceleration, set it to YES. Also need to use Lilu.kext and IntelGraphicsDMVTFixup.kext 1.1.4 in case config.plist patch doesn’t work. This is my config.plist for this laptop.

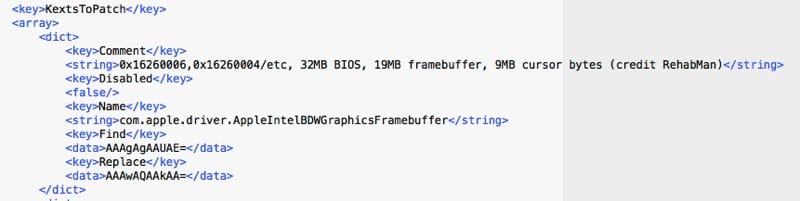

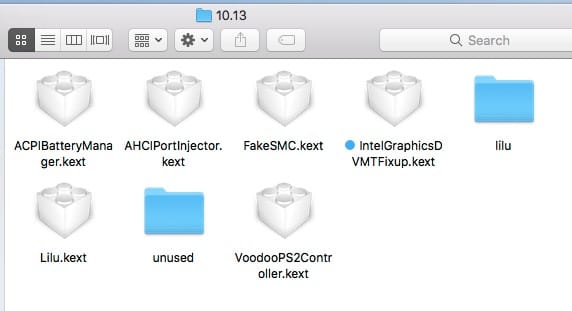

broadwell kexts for macOS High Sierra 10.13     Clover KextsToPatch for Broadwell HD5500

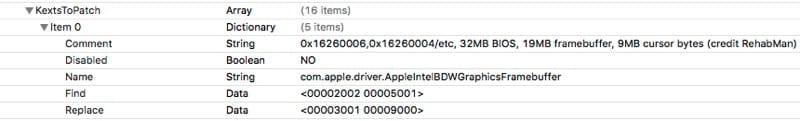

Clover KextsToPatch for Broadwell HD5500 in Xcode

KextsToPatch in config.plist

<key>Graphics</key>

<dict>

<key>ig-platform-id</key>

<string>0x16260006</string>

<key>Inject</key>

<dict>

<key>Intel</key>

<true/>

</dict>

</dict>
<dict>

<key>Comment</key>

<string>0x16260006,0x16260004/etc, 32MB BIOS, 19MB framebuffer, 9MB cursor bytes (credit RehabMan)</string>

<key>Disabled</key>

<false/>

<key>Name</key> <string>com.apple.driver.AppleIntelBDWGraphicsFramebuffer</string> <key>Find</key>

<data>AAAgAgAAUAE=</data>

<key>Replace</key>

<data>AAAwAQAAkAA=</data>

</dict>
