How To Fix A8 D3 Dash LED Indicator Lights OUT


My 2006 A8 D3 dash board LED indicator panel lights and the rear LED panel lights were out due to 1A fuse blown. There is a wire broken and shorted on one of the arm rest (bad design). This is how I fixed mine. We need to open the rear vent panel and disconnect 2 connectors (1 will be shorted).

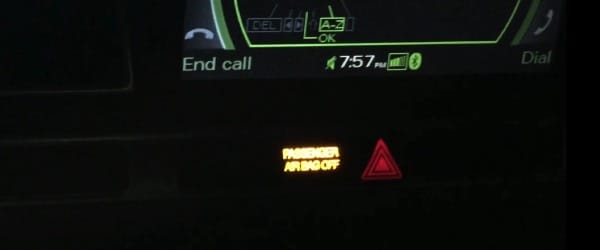

A8 D3 Front Panel Indicator lights fixed A8 D3 Front Panel Indicator Lights Out

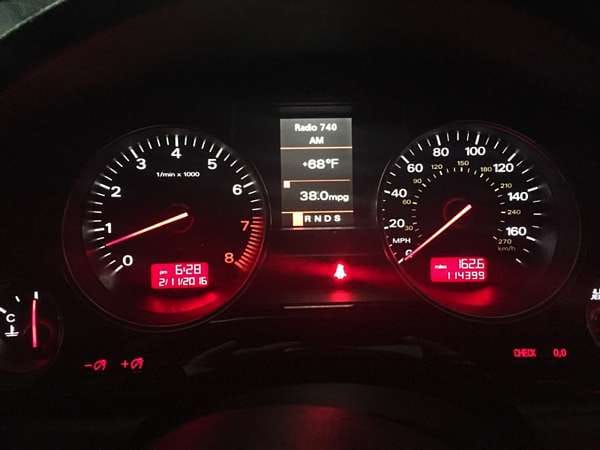

A8L D3 Interior LEDS Gallery

A8 D3 Door Ashtray LED A8 D3 Rear Door Switches and Dial LEDS A8 D3 Rear Door Switches and Dial LEDS A8 D3 Rear Console Dials and Ashtray LEDS A8 D3 Armrest LED A8 D3 Cup Holder LED A8 D3 Front Center Console LEDS A8 D3 Driver Door Switches LEDS A8 D3 Dashboard LEDS A8 D3 Front Console Ashtray LED

7 comments
  1. I have an audi a4 2009 2.0t all my instruments were working even my ac ever since I hooked up this OBD11 PRO nothing works my instruments lights don’t come on my dash is totally dark and my a/c doesn’t work…is there any way you can help me out please

    1. What did you do when you hooked up the OBDeleven Pro? Did you delete something? Write something, reset something? Like I said, all these break more than fix anything. There’s no reset to default.
