Hot Air Comes Out of Left Vents With AC On

The summer is coming and my A8 D3 AC blows hot air out of all the left vents, front and rear: Center console, pillar vent while the right side is cold. Using the AC Manifold Gauge I could see the pressure of both low and high are still good, although on the low side.

The main reason for this problem is the low freon and air in the system somehow, I did fix it by evacuated system and charge with new freon 620g+/-20g = 21~22 oz = less than 2-12oz cans. Don’t over charge the system.

AC pressure Chart with Temperatures

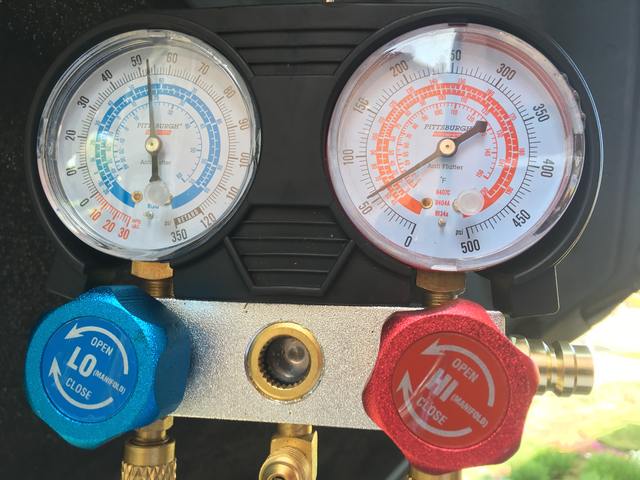

Low & High Pressure Engine OFF     Low and High Pressure Engine AC On

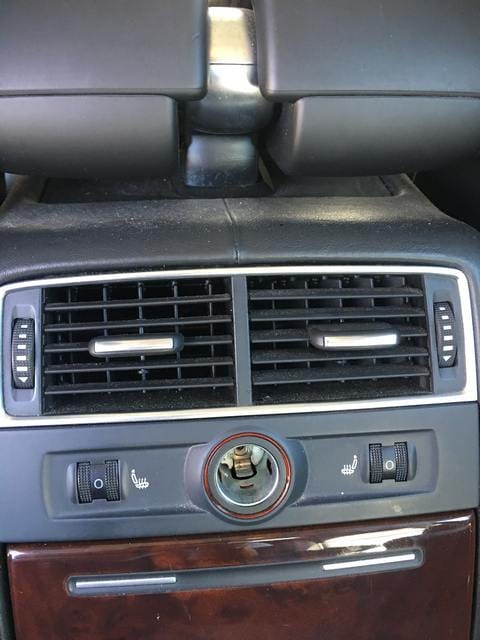

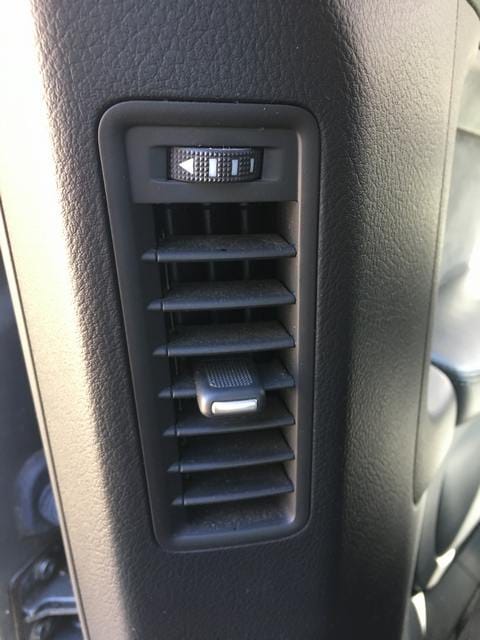

Left Pillar Vent Hot Air     Left Center Vent Hot Air while the Right is cold

The temperature outside was 65-67F, the pressure on both sides were good but still NOT working until we evacuate and charge the system fully.

.
